EZ-HD08

Heavy Duty Pole Setter

Make it EZ!

Utility Made EZ

      Utility Videos

      The EZ Spot UR EZ-HD08 Pulling Utility Poles

      The EZ Spot UR EZ-HD08 Handling Utility Poles

      The Heavy Duty Pole Setter pulling and setting a pole

      The Heavy Duty Pole Setter pulling and setting utility poles.

      Set Poles!

      Rotates 115° to operator's left.

      Pull poles!

      Handle Street Lights!

      Heavy Duty Pole Setter

      Infrastructure Made EZ

        Infrastructure Videos

        EZ-HD08 Handling Pilings on a Construction Site

        EZ-HD08 Handling Pilings on a Construction Site

        Heavy Duty Pole Setter Information

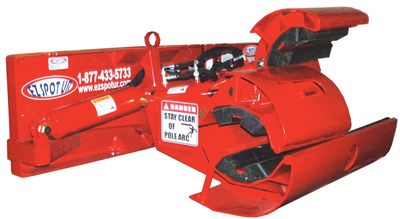

        The EZ Spot UR EZ-HD08 Heavy Duty Pole Setter rotating attachment

        Key Features

        • The Heavy Duty Pole Setter attaches to a skid steer or any other machine that is equipped with the Universal Quick 'Tach mounting system.
        • Rated for a 45 foot, 2500 pound pole.
        • Rotates 115° to the operator's left.
        • Attachment weighs 1,400 pounds.
        • The two jaws operate independently and close in sequence for safety and security.
        • As a stand-alone unit it employs two large clamp cylinders on the base to rotate the tool-head and provide stability and precision.
        • Composed of ½ inch Grade 80 material or higher.

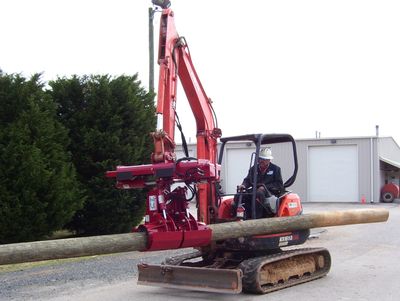

        The EZ-HD08 Heavy Duty Pole Setter on an excavator with a pole.

        Equipment Specifications

        • The clamping is activated by two 3” X 6” clamp cylinders with check valves to ensure safety in case of a hydraulic line break.
        • Each clamp cylinder has a breakout force of 21,208 lbs.
        • Comes standard with rubber lining on the jaws to protect the pole and allow use on any type of pole.
        • The backing plate is designed to carry the pole above the machine to facilitate the pole transportation and reduce the movement of the pole.
        • Comes complete with hoses, flush faced couplers, spring hose mount and wiring harness.
        • Can be adapted to fit excavators, wheel loaders, telehandlers and backhoes*.


         *Requires specialty bolt-on mount.

        Download Spec Sheets
        The EZ Spot UR EZ-HD08 Heavy Duty Pole Setter attachment on a skid steer setting poles in the ground

        Product Description and Applications

        The EZ-Spot-UR, Inc Heavy Duty Pole Setter is designed to handle big, heavy utility poles up to a 45 foot Class 1 pole. With the Heavy Duty Pole Setter, the operator can easily pick up a pole on the ground or a trailer and quickly rotate it to a vertical position. This allows the operator to position the pole as desired with minimal effort and with a secure clamp.  The “Big Bertha” offers 115° rotation and the jaws open to 20.5 inches and close down to 5 inches**.

        The Heavy Duty Pole Setter assures quick and easy loading unloading, pulling and setting of 45 foot utility poles. The Heavy Duty Pole Setter eliminates the need for cranes or slings and runs circles around a Digger Derrick. The rubber lining prevents damage to the pole and the sequencing jaws allow for precision setting. The Heavy Duty Pole Setter will also allow you to get to places never thought possible with other equipment which makes it ideal for repairs after a storm and for new construction.


        **Inserts can be purchased to close the jaws down to 0.

        Download Product Description

        Brochures

        HD08 Handout 1 (pdf)Download
        HD08 Handout 2 (pdf)Download
        HD08 Handout 3 (pdf)Download
        HD08 Handout 4 (pdf)Download
        Infrastructure Brochure Handout (pdf)Download

        Spec Sheets

        Heavy Duty Pole Setter Closed (PDF)Download
        Heavy Duty Pole Setter Open (PDF)Download
        Heavy Duty Pole Setter Rotated Closed (PDF)Download
        Heavy Duty Pole Setter Rotated Open (PDF)Download
        Heavy Duty Pole Setter with Upper Jaw Insert (PDF)Download
        Heavy Duty Pole Setter with Medium Upper Jaw Insert (PDF)Download
        Heavy Duty Pole Setter with Komatsu PC210 Excavator Mount (PDF)Download
        Heavy Duty Pole Setter Specification Page (pdf)Download

        PowerPoint

        Heavy Duty Pole Setter PowerPoint 2020 (pdf)Download

        Product Description

        Heavy Duty Pole Setter Product Description (pdf)Download
