Compact Utility Rotator

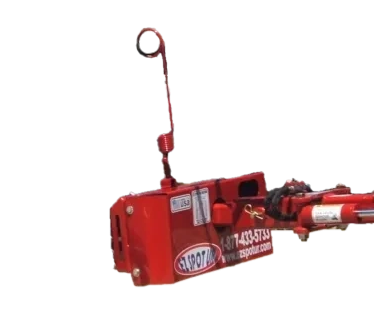

The picture shows the EZ-00CR Compact Utility Rotator with the EZ-0005 Utility Claw.

The following are the specifications for the base:

• Attaches to a mini track loader or a machine with the smaller size quick 'tach.
• Quick 'tach is 23-9/16" wide and the pin hole spacing is 14-9/16" center to center.
• Base weighs 188 lbs.
• 2.94" square shaft.
• 3/4" pin for easily switching between attachments.
• One 3" x 9.5" hydraulic cylinder rotates the shaft with a rack and pinion.  The cylinder has a breakout force of 21,206 lbs.
• Shaft rotates 200°.
• Two tapered roller bearings provide smooth rotation
• Composed of Grade 50 steel and core welded to withstand years of wear and tear.
• Comes complete with hoses, flush faced couplers, spring hose mount, and wiring harnes

The picture shows the EZ-00CR Compact Utility Rotator with the EZ-0010 Three Finger Tree Hand.

The EZ Spot UR Compact Utility Rotator makes your mini track loader into a very versatile machine.  You can easily switch between different EZ Spot UR attachments by pulling the 3/4" pin out of the shaft and sliding the new tool head onto the shaft. The base accepts all tool heads with the 3" square receiver.  However, for use with a mini track loader, the lighter weight tool heads such as the EZ-0008 Double Pole Claw, EZ-0010 Three Finger Tree Hand, or the EZ-0005 Utility Claw will work better for the lift capacity of the machine.

Don't limit yourself with just a bucket on your mini track loader. With EZ Spot UR Rotating Attachments you can handle poles, rocks, trees, and so much more!
